lithium Battery Vacuum Heat Sealing Machine for Pouch Cell Pre-sealing
MR-YF200

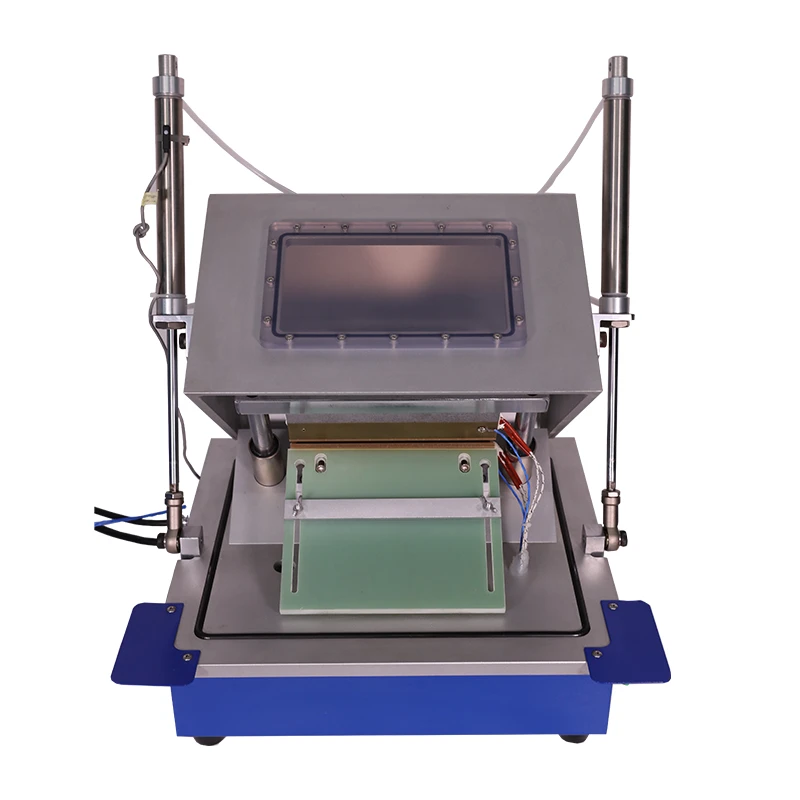

MR-YF200 Compact Vacuum Sealer is mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.
* Vacuum degree can be adjusted up to -95Kpa (the buyer shall provide a vacuum pump);
* The range of the battery is 200 in length and 160mm in width (including air bag position)
|
|
Compact Vacuum Sealer MR-YF200 |
|
|
AC 220V/110V, 50/60HZ |
|
|
600W |
|
|
|
|
|
1 Sealing Head adopts copper material, good heat transfer effect, 2 With adjust plate, Can apply to different specifications battery, and the adjusting easily |
|
|
-95Kpa - 0 |
|
|
RT-250 degree , adjustable |
|
|
±1.5 degree |
|
|
0-7Kg/cm2, adjustable |
|
|
0-99s, adjustable |
|
|
|
|
|
5mm, customized |
|
|
200mm |
|
|
180*120*10mm |
|
|
0.5-0.7MPa (72.5-102psi) |
|
|
Sealing Unit with Chamber Closed: 470*430*480mm Sealing Unit with Chamber opened: 470*430*559mm Control Unit: 420*320*220mm |
|
|
About 50kg |
